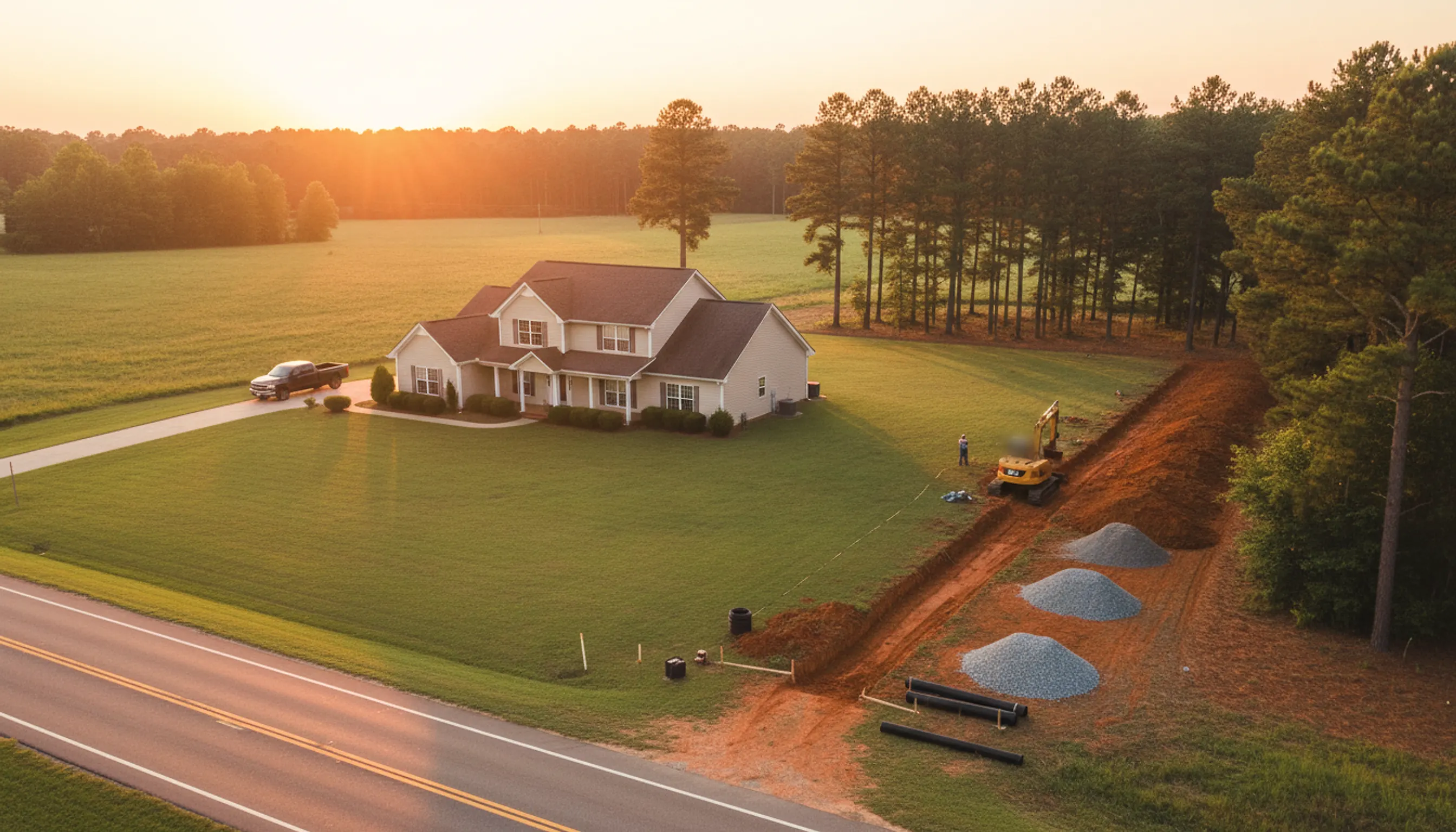

A rural two-story house at sunset with a long strip of freshly turned red clay along the field edge, gravel piles and pipe staged for a drain field.

Drain Field Installation & Repair · Madison, GA

Drain field installation and repair for septic systems around Madison, Georgia.

Madison, Morgan County. ZIP code 30650.
Call (678) 863-5620Free estimate
  • Lake Oconee & Lake Sinclair
  • Residential & commercial
  • 10% off: military & first responders

Get a free estimate

or call (678) 863-5620

Property type
What do you need?
Rather talk? (678) 863-5620
Where's the property?
Is it a lake lot? (optional)
Who should we call?

By submitting, you agree we may call or text you about this request. Privacy.

The short answer

What does drain field repair or installation involve around Madison, GA?

Around Madison, a new or replacement drain field is permitted and inspected by Morgan County Environmental Health. The trenches have to fit the soil, keep 100 feet from wells and 50 feet from the lake or a creek, and leave room for a future replacement. A Class Septic digs, lays and backfills the field to that permit.↗↗

Reviewed by A Class Septic Services · Last updated

At a glance

County
Morgan County
ZIP codes
30650
Sewer
City of Madison Utilities (Indian Creek WRF GA0038741; Southside WPCP GA0023141)
Water
City of Madison Water Department (PWSID GA2110002)
Population
4,447 (2020 Census)

Soil & terrain

Why Morgan County fields wear out the way they do

The biggest single soil unit in the Morgan County survey is Lloyd clay loam on 6 to 15 percent slopes, severely eroded, at about 54,880 acres. Lloyd is deep and well drained, but on that eroded unit the plow layer is gone and trenches start in red clay.↗↗

Hard Labor soils, a series first described in Morgan County in 1998, behave differently. They are only moderately well drained and can carry a perched water table 18 to 30 inches down from January to April. A conventional trench needs 24 inches of separation from seasonal water, so on Hard Labor ground a field that worked in August can be sitting in water in March.↗↗

Madison itself straddles a drainage divide at 691 feet, with Sugar Creek below the south side and Mill Branch running north to Hard Labor Creek. Fields on the lower ground near those branches deal with more water than fields up on the ridge.↗

  1. Lloyd clay loam, 6-15% slopes, severely eroded↗

    About 54,880 acres, the county's largest map unit.

  2. Hard Labor↗

    Moderately well drained; perched water 18-30 inches deep in late winter.

  3. Chewacla silt loam, frequently flooded↗

    Creek-bottom soil; flood-prone areas should not hold a field.

  4. Soil series · USDA NRCS

Local facts

Drain field numbers for Morgan County

Each row links to the agency, code or publisher it comes from. Tap a source to check it yourself.

Soil ratings and state trench rules that apply to fields around Madison.
TopicWhat it saysSource
Morgan County soil rated 'somewhat limited' for septic fieldsAbout 179,700 acres of major componentsUSDA NRCS Soil Data Access (SSURGO), survey area GA211 Morgan County
Rated 'very limited'About 38,900 acresSame source as above
Hard Labor seasonal water table18-30 inches, January to April (perched)USDA NRCS Official Series Description: Hard Labor series
Trench width / spacing / cover36 inches max; laterals 7 ft apart center to center; 6-12 inches of earth coverGA DPH Manual for On-Site Sewage Management Systems (March 2026), Section F: Dispersal Systems
Steepest slope for a standard field25%, unless a soil classifier's special investigation shows otherwiseGA DPH Manual for On-Site Sewage Management Systems (March 2026), Section B: General Site Provisions
Morgan EH residential repair permit$200Morgan County EH fees, effective August 1, 2024 (Northeast Health District)

Warning signs

Field-specific failure signs

These point to the trenches rather than the tank.

Seeing two or more of these? Call before it gets worse.

Call (678) 863-5620Free estimate
  • 1. Effluent surfacing in a line across the slope below the tank
  • 2. Grass over the trenches staying green through a dry Georgia August
  • 3. The tank level running high even right after it was pumped
  • 4. Wet spots that show up every late winter and dry out by summer
  • 5. A downhill trench soaked while the upper ones look dry

The Madison story

Repair the field or replace it?

Some fields are not dead, just unevenly loaded. When a distribution box settles on a slope, the lowest trench takes everything and fails first. Releveling the box or rebuilding a crushed line can bring the rest of the field back. When the soil under the trenches is clogged, though, the answer is new trench in fresh ground.

That fresh ground has to exist. DPH requires enough unobstructed land for a full replacement field, and trenches put in on 16-foot centers leave room to cut replacements between the originals. On a small farm lot that already has a barn, a well and a garden, finding that room is the real design problem.↗

Timing matters on clay. DPH says trenches in anything other than sand must not be dug wet, because the walls smear and seal. Around Madison that usually means waiting out a wet spell rather than digging the day after a storm.↗

Some fields are not dead, just unevenly loaded.

What it costs

Drain field cost ranges

National HomeAdvisor figures. Not A Class pricing.

What moves the price

These are third-party typical market ranges, not our prices. Every job is quoted after we see it — estimates are free.

Free estimate: (678) 863-5620
  1. 01Total trench length the soil report calls for
  2. 02Rock or perched water that forces an aerobic unit or drip field
  3. 03Clearing needed to reach replacement ground
  4. 04Whether a pump is needed to lift effluent to the new trenches

Services here

FAQ

Drain field questions from Madison homeowners

Straight answers, with the rule or record behind them. Still unsure? Call and ask the crew that digs.

(678) 863-5620

Why does my field only act up in winter and spring?

Some Morgan County soils, including the Hard Labor series, hold a perched water table 18 to 30 inches down from January to April, which crowds a trench that needs 24 inches of dry soil beneath it.

Source: USDA NRCS Official Series Description: Hard Labor series

How far does a new field have to be from my well?

At least 100 feet from wells and springs, and 50 feet from the normal water level of a lake, pond or creek.

Source: Ga. Comp. R. & Regs. r. 511-3-1-.07, Absorption Fields (LII)

Is replacing a field a repair permit or a new permit in Morgan County?

It is handled as a repair. Morgan EH's residential repair permit is $200, and the new trenches are inspected before they are covered.

Source: Morgan County EH fees, effective August 1, 2024 (Northeast Health District)

Can a field go on a steep pasture?

Not over 25 percent slope unless a soil classifier's special investigation shows the limit can be overcome. Flood-prone creek bottoms should not be used at all.

Source: GA DPH Manual for On-Site Sewage Management Systems (March 2026), Section B: General Site Provisions

Can I regrade over the field once it is fixed?

Avoid it. Grading or filling that may affect an approved system voids the approval.

Source: Ga. Comp. R. & Regs. r. 511-3-1-.03, General Requirements for On-Site Sewage Management Systems (LII)

How much extra room does Morgan County expect for a future field?

Enough open, unobstructed land to replace the whole absorption field. Laying the first trenches on 16-foot centers lets replacement trenches go in between them later.

Source: GA DPH Manual for On-Site Sewage Management Systems (March 2026), Section F: Dispersal Systems

Nearby areas

Drain field work in neighboring areas

Sources

Where these facts come from

Rules, costs and local facts on this page link to the agency, code or publisher that states them. Cost figures are third-party market ranges, not our prices — estimates are free.

Reviewed by A Class Septic Services · Last updated

  1. 1Northeast Health District: Morgan County locations (Environmental Health)
  2. 2Ga. Comp. R. & Regs. r. 511-3-1-.07, Absorption Fields (LII)
  3. 3USDA NRCS Soil Data Access (SSURGO), survey area GA211 Morgan County
  4. 4USDA NRCS Official Series Description: Lloyd series
  5. 5USDA NRCS Official Series Description: Hard Labor series
  6. 6GA DPH Manual for On-Site Sewage Management Systems (March 2026), Section F: Dispersal Systems
  7. 7Wikipedia: Madison, Georgia
  8. 8GA DPH Manual for On-Site Sewage Management Systems (March 2026), Section B: General Site Provisions
  9. 9Morgan County EH fees, effective August 1, 2024 (Northeast Health District)
  10. 10HomeAdvisor: Septic System Installation Cost (updated Jun 20, 2026)
  11. 11HomeAdvisor: Septic Tank Repair Cost (updated Jun 19, 2026)
  12. 12Ga. Comp. R. & Regs. r. 511-3-1-.03, General Requirements for On-Site Sewage Management Systems (LII)
